Data East Power Supply Capacitor Repair Kit for Board 520-5000-00

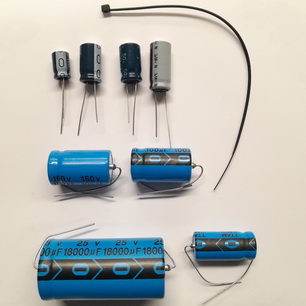

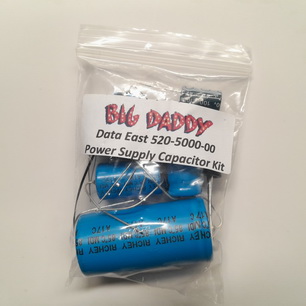

Description Data East Power Supply Capacitor Repair Kit for Board 520-5000-00 Another Big Daddy Repair Kit. Full kit containing all the electrolytic capacitors on the Data East power supply 520-5000-00, the board part number is often covered by a sticker under CN5 and CN6.All of these caps are a higher quality Illinois Cap, Nichicon and Richey, which are custom made to order. Includes 1 X 1,000uf/25V radial cap for C1 (Note 1) 1 X 100uf/50V HIGH TEMP radial cap for C2 (Note 1,3) 1 X 47uf/100V HIGH TEMP radial cap for C3 (Note 1,3) 1 X 18,000uf/25V axial cap for C4 1 X 330uf/50V HIGH TEMP radial cap for C7 (Note 1) 1 X 150uf/100V axial cap for C8 (Note 2) 2 X 100uf/160V axial cap for C10 & C11 (Note 2) 1 X zip tie for C4 Note 1: All boards examined are designed to take a radial or axial at this location. In low stock situations a sub might be made. Note 2: This is the proper axial cap, the Data East board is *not* designed to take a radial cap here. Note 3: It is critical that these caps, especially C2, are HIGH TEMP caps. Game Listing ; Back to the Future Laser War Monday Night Football Phantom of the Opera Playboy Robocop Secret Service The Simpsons Time Machine
