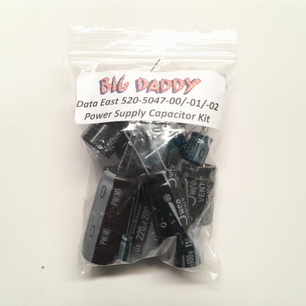

Data East Power Supply Capacitor Repair Kit for Board 520-5047

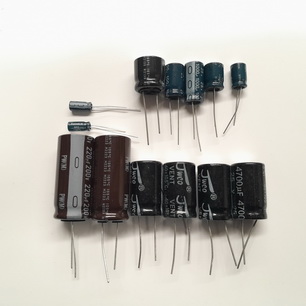

Description Data East Power Supply Capacitor Repair Kit for Board 520-5047 Another Big Daddy Repair Kit. Full kit containing all the electrolytic capacitors on the Data East power supply 520-5047 version 00 through 02. If you need a kit for 520-5047-03, it’s coming soon. All of these caps are a higher quality than what some others are offering, Illinois Cap, Nichicon and Richey, which are custom made to order. Includes; 1 X 1,000uf/25V HIGH TEMP radial cap for C1 1 X 100uf/50V HIGH TEMP radial cap for C2 (Note 1,3) 1 X 47uf/100V HIGH TEMP radial cap for C3 (Note 1) 4 X 4,700uf/25V HIGH TEMP radial cap for C4 (Note 2) 1 X 330uf/25V HIGH TEMP radial cap for C7 (Note 1,3) 1 X 150uf/100V HIGH TEMP radial cap for C8 2 X 220uf/200V HIGH TEMP radial cap for C10 & C11 (Note 4) 2 X 22uf/50V HIGH TEMP radial cap for C14 & C15 Note 1: It is critical that these caps, especially C2, are HIGH TEMP caps. Note 2: All boards examined are designed to take a single 18,000uf axial or (4) smaller 4,700uf radial caps at this location. Note 3: Schematics show 25V but 16V has been seen on many boards. Note 4: Some boards may have 100uf or 150uf caps here, 220uf is preferred and an improvement. A connector and fuse kit will soon be available. Game Listing: Checkpoint Teenage Mutant Ninja Turtles Batman Star Trek 25th Anniversary Hook Rocky and Bullwinkle Guns N’ Roses Jurassic Park Last Action Hero Lethal Weapon 3 Star Wars Tales from the Crypt The Who’s Tommy WWF Royal Rumble.
