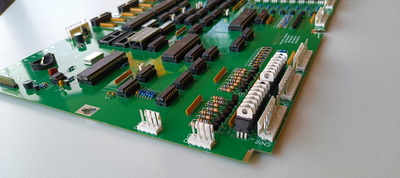

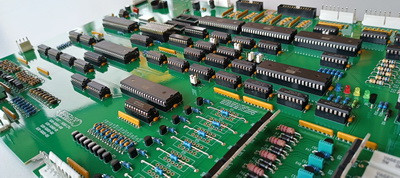

Data East / Sega Pinball CPU / MPU Board 520-5003-0X

Description Data East / Sega Pinball CPU / MPU Board 520-5003-00 / 520-5003-01 / 520-5003-02 / 520-5003-03 Plug and Play direct 1:1 replacement with all features from the original. Replaces Data East 520-5003-00/01/02/03 Features ; – NVRAM Included (No Need For Batteries – We use Genuine Infineon 64Kb F-RAM for all our NVRAM) – High Quality Components – We only use genuine components from reputable companies – ST, Onsemi, Molex, Nichicon, TE Connectivity, Vishay, Yageo etc – Every Chip Socketed for Easy Repair (All sockets are TE Connectivity) – Shrouded IDC Ribbon Cable Headers – Upgraded Williams style mounting keyholes for easy install/removal – Upgraded Button Cell Battery Socket with Original AA Unpopulated Footprint – Upgraded Q64-Q71 Mosfets to eliminate heat – board has been thermal tested and runs extremely cool. (Original transistor circuitry remains and can be used if desired) – Resistor vent holes with isolated plains added under R55-R62 – Jumper pins added for quick game compatibility set-up – Genuine/Authentic WDC 6821 PIA’s – Original socketed Japan FRL relay for easy removal – 2 layer ground plains added top and bottom for solid ground reliability – True to Original (Original Schematics Can Be Used) – Supports Every Single Game as the Original – 12 Months Local Warranty – Designed & Assembled in Australia – NVRAM & CPU are included – Game ROM Not Included Game Compatibility: Back to the Future Batman Batman Forever Baywatch Checkpoint Frankenstein Guns N’ Roses Hook Jurassic Park Laser War Last Action Hero Lethal Weapon 3 Maverick Monday Night Football Phanton of the Opera Playboy 35th Anniversary Robocop Rocky & Bullwinkle Secret Service Simpsons Star Trek 25th Anniversary Star Wars Tales from the Crypt Teenage Mutant Ninja Turtles Time Machine Tommy Torpedo Alley WWF Royal Rumble
